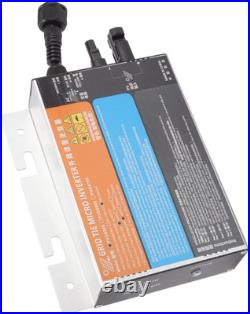

Specification Model: WVC-1400W Color: Silver Material: Aluminium Alloy Power: 1400W Voltage: 110V Plug Type: US Standard Maximum Input DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Min/Max Start-up Voltage: 22-50V Maximum DC Short Circuit Current: 80A Maximum Input Operating Current: 58A Output Peak Power: 1400watt Rated Output Power: 1350watt Rated Output Current: 12.8A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Power Factor: >99% Number of Circuit Connections Per String: 3 Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Night Time Power Loss. MPPT Grid Tie Smart Solar Micro Inverter 1400W Grid Tie & DC to AC 110V! Plug Type: US Standard. Maximum Input DC Voltage: 54V. Peak Power Tracking Voltage: 22-45V. Operating Voltage Range: 17-50V. Min/Max Start-up Voltage: 22-50V. Maximum DC Short Circuit Current: 80A. Maximum Input Operating Current: 58A. Output Peak Power: 1400watt. Rated Output Power: 1350watt. Rated Output Current: 12.8A. Rated Voltage Range: 80-160VAC. Rated Frequency Range: 57-62.5Hz. Number of Circuit Connections Per String: 3. Static MPPT Efficiency: 99.5%. Maximum Output Efficiency: 91.2%. Night Time Power Loss. Operating Temperature Range:? 40? 60? /? 40? 140? Communication Mode: Power Line Carrier. Power Transmission Mode: Reverse Transmission, Load Priority. Gross Weight: 4.2kg/9.26lbs. Net Weight: 3kg/6.61lbs. Product Size: 2137.44cm/8.2714.721.57inch. Package Size: 483512cm/18.913.784.72inch. An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. This microinverter makes it easier. Made of fine aluminum alloy, this I. S a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you. Premium Material: The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved. High Efficiency: The product adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking. Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users. Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable. Good Heat Dissipation Effect: The product adopts a self-cooling system and is designed with heat dissipation holes, which can timely reduce the temperature during operation, reduce potential safety hazards and extend the applicable life of the product. Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence. Easy Maintenance: After the installation of the power station, you don’t need to do maintenance work. After a long period of use, you only need to remove the dust from the photovoltaic panel. Small Footprint: With a size of. 8.271.5714.72inch. The inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space. Flexible Installation Mode: During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC. At the same time, we also provide a detailed manual and various accessories. You just need to follow the steps to install them. Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable. Round Corners : The corners of this product are very round, which can effectively reduce your skin scratches during installation or movement. LED Indicator: The product uses an LED indicator, which mainly has two colors: red light and green light. You can master the product situation in time according to the color and flicker of the light, which is very convenient. This product is applicable to 30V or 36V solar panels, or 36V batteries. The inverter can be widely used in residential or commercial areas, power stations, and schools for turning the direct current generated by solar panels into alternating current. Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine. Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input verdana of the inverter. Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug. Step 4: Connect the AC output cable to the AC main cable. Step 5: Repeat steps 1 to 3 to install and connect all inverters. Step 6: Connect the AC main cable to the public grid and start your green energy journey. 1 Solar Grid Tie Micro Inverter. Other Accessories for Installation. Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel. Please don’t dismantle the machine. Only qualified maintenance personnel can repair the inverter. Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives. When using this inverter, please take good care of your children to prevent them from touching and playing to avoid electric shock. Please note that connected solar panels, batteries, or wind generators DC input DC power supply cable. Please note that this inverter does not have a monitoring function. Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation. When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W. When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is 36V/10mah for 300W, 36V/20mah for 600W, and 36V/40-45mah for 1200W. The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order. Feedback is very important to us. It is impossible to address issues if we do not know about them! Faction is our ultimate goal. We work hard to earn your trust and future business. A If you receive a defective item, you may return it or ask for a discount. Due to time zones, our reply to your questions may not be immediately. If it’s non-workdays, please kindly be patient and wait till Monday.
