700W Solar Inverter Grid Tie MPPT Pure Sine Wave 120V Waterproof Self Cooling US

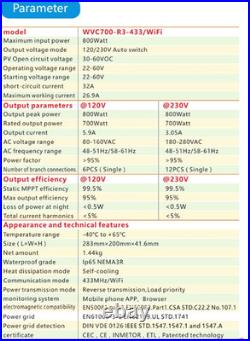

Specification Material: Aluminum Alloy Color: Silver Model: XJ-WVC-700W Plug: US Standard Voltage: 110V Maximum Input Power: 2 × 350W Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50V Maximum Input DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Minimum/Maximum Starting Voltage: 22-50V Maximum DC Short Circuit Current: 40A Maximum Input Working Current: 30A Output Voltage: 120V Output Peak Power: 700W Rated Output Power: 650Watt Rated Output Current: 6.36A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Power factor: >99% Number of Connections Per Series Circuit: 6 (Single-phase) Output Efficiency: 120V Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Power Loss at Night. 700W Solar Inverter Grid Tie MPPT Pure Sine Wave 120V Waterproof Self Cooling US. Solar Micro Inverter 700W Grid Tie MPPT Pure Sine Wave DC 22-50V to AC 120V Waterproof IP65. Maximum Input Power: 2 × 350W. Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50V. Maximum Input DC Voltage: 54V. Peak Power Tracking Voltage: 22-45V. Operating Voltage Range: 17-50V. Minimum/Maximum Starting Voltage: 22-50V. Maximum DC Short Circuit Current: 40A. Maximum Input Working Current: 30A. Output Peak Power: 700W. Rated Output Power: 650Watt. Rated Output Current: 6.36A. Rated Voltage Range: 80-160VAC. Rated Frequency Range: 57-62.5Hz. Number of Connections Per Series Circuit: 6 (Single-phase). Static MPPT Efficiency: 99.5%. Maximum Output Efficiency: 91.2%. Power Loss at Night. Operating Temperature Range: – 40? Heat Dissipation Mode: Self Cooling. Power Grid Disturbance: EN61000-3-2 Safety Regulation EN62109. Grid Detection: DIN VDE 1026 UL1741. Gross Weight: 2.45kg/5.4lbs. Net Weight: 1.8kg/3.96lbs. Package Size: 342411.5cm/13.389.444.52in. Product Size: 21.35.825cm/8.392.289.84in. With a powerful MPPT algorithm and a 99.9% efficient transmission rate, this solar inverter can greatly improve conversion efficiency while providing stable AC power for home appliances. With high-quality materials and multiple protection features, this solar inverter can serve you for a long time. The product’s built-in MPPT Max. Power Point Tracking optimizes power collection from the solar panel and precisely captures and locks the maximum output power point to significantly increase power generation to more than 25%. The 99.9% efficient reverse power transmission technology transmits the power in the reverse direction in grid-connected output mode while automatically detecting the load in the circuit and prioritizing its use, which greatly improves transmission efficiency. Pure Positive Sine Wave. The product uses SPWM to directly generate a pure positive sine wave with good waveform, low distortion, and low noise to make the radio and other communication devices feel better. The inverter dial fast using high-frequency switching power supply technology and 32-bit DSP fully digital SPWM control technology provides the product with excellent. Capability, high-speed computing capability, and intelligence. Grid-connected and Off-grid Stacking Mode. Inverters can be stacked in parallel with any number of units for both grid-connected and off-grid use. After the main monitoring system sends the main control signal the inverter receives the main control signal for synchronous output. The whole power distribution system is well insulated and the output of the system is completely electrically isolated from the input, which makes the use safer and more reliable. Over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short-circuit protection, and overload protection protect the safety of use in all aspects. Multiple inverters can be stacked arbitrarily, forming a single-phase parallel stacking system or a three-phase system to provide three-phase AC power conveniently. Flexible installation allows for a wider range of applications. The power station only needs to clean the. On the PV panel regularly after installation, which makes it very convenient and quick. The upgraded miniature design makes the product size only 8.392.289.84 inches and net weight only 3.96 pounds, which makes it easy to carry and install. The solar inverter is made of high-quality aluminum alloy, which is very strong, durable, and. To be able to serve you for a long time. High-quality material and stable structure bring the product IP65 excellent. Performance so that it can effectively group the influence of. And water, and can operate stably outdoors. We aim to provide quality products and services. We will reply and solve the problem for you as soon as possible. Rounded and smooth corners can protect hands from scratches for easy installation and portability. Clear LED Display Lamp. Clear LED display lamp allows you to easily understand the status of the product for operation. This solar inverter is mainly used for power stations, schools, and home grid connections. Step 1: Install the inverter on the bracket of the photovoltaic panel with the screws. Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter. Step 3: Open the. Cover of the AC output connector of the inverter and connect the AC cable to the AC. Step 4: Connect the AC output cable to the AC main cable. Step 5: Repeat steps 1 to 3, install and connect all inverters. Step 6: Connect the AC main cable to the utility grid to start your green energy journey. 1English User Notes Manual. All Accessories Needed for Installation. Please correctly install the inverter according to the instructions. If you have any questions, please contact the relevant personnel. T allowed to disassemble the machine. Only qualified maintenance personnel can repair the product. Please install the inverter in a place with low humidity and good ventilation to avoid overheating of the inverter, and remove flammable and explosive materials around. When using this product, children should not touch or play to avoid electric shock. Connect the solar panel and the DC input of the battery DC power supply cable. Our product is grid-connected power generation. The AC output port must be connected to the home grid to achieve grid-connected power generation. When using solar photovoltaic panels, the VOC voltage must be between 30-48V. It is recommended that the power configured for the solar panel be greater than 20% of the product power. When using the battery, it is recommended that the battery voltage be 36V, and three 12V batteries can be connected in series. When connecting the product, the positive and negative polarity shall not be reversed. For 300W products, the recommended parameter of the battery is 36V/10mah. For 600W products, it is recommended that the battery parameter be 36V/20mah. 1200W product: it is recommended that the battery parameter be 36V/40-45mah. The customer’s configuration parameters, input, and output voltages are within the normal voltage range of the product so that the product can work normally and realize grid-connected power generation. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order. Feedback is very important to us. It is impossible to address issues if we do not know about them! Faction is our ultimate goal. We work hard to earn your trust and future business. A If you receive a defective item, you may return it or ask for a discount. Due to time zones, our reply to your questions may not be immediately. If it’s non-workdays, please kindly be patient and wait till Monday. Reverse Power Transmission, Pure Sine Wave, High-quality Material. Power 2 × 350W. Maximum Input DC Voltage. Peak Power Tracking Voltage. Maximum DC Short Circuit Current. Maximum Input Operating Current. Number of Circuit Connections Per String. Night Time Power Loss. EN61000-3-2 Safety Regulation EN62109. DIN VDE 1026 UL1741. 21.35.825cm/8.392.289.84in. 342411.5cm/13.389.444.52in.
